J's Racing Accord CL7 - Suspension
- CL7 Special Dumper Full Length Adjustment Kit
Parts# DSPL-E2
Price $5,485.00
Jointly developed with CRUX Engineering, a premier performance / racing suspension manufacturer. The products are designed from enormous data collected from countless field tests on the race track. The stroke, dumping force, gas pressure are all optimized to achieve the best lap times. Feedback information are used to manufacture the best street / performance suspension kits for our customers.
CRUX's name might imply "racing suspension". However, each system is hand made to meet J's racing specification and the smoothness of the system also provides a comfortable ride on the street.
Standard kit
Aluminum body damper (front / rear) with the 30 stages adjustable dumping force
Spring (several choices are offered to match your driving stage)
Aluminum upper sheet front & rear
Bump rubber
Dust boots
- Front Pillow Upper Mount - for Special Dumper Kit
Parts# PUM-E2-F
Price $458.00
Designed for the special dumper kit, it is a front pillow upper mount kit
made of aluminum.
- CL7 Wide Tread Spacer
26mm Parts# WTS-E2-26 Price $232.00
20mm Parts# WTS-E2-20 Price $206.00
15mm Parts# WTS-E2-15 Price $206.00
10mm Parts# WTS-E2-10 Price $206.00
26mm, 20mm, 15mm spacers are made of duralumin and 10mm spacer is made of carbon steel. PCD 114.3, holes 5, and pitch 1.5.
Manufactured by precise forging, it is very strong and light.
- CL7 Long Hub Bolt 10mm (Long lug bolt)
Parts# LHB-E2-10
Price $18.00
Made of Chromium molybdenum steel (chrome-moly)
Size M12 x P1.5
Extension 10mm
Spline (threaded area) diameter 12.3mm
Total length 53mm
This longer hub bolts will provide more freedom in choosing a big caliper brake system, wider fender flare, and performance wheels.
[The price is for one piece. 20 pieces are required for one CL7.]
- CL7 Long Hub Bolt 20mm (Long lug bolt)
Parts# LHB-E2-20
Price $20.00
Made of Chromium molybdenum steel (chrome-moly)
Size M12 x P1.5
Extension 20mm
Spline (threaded area) diameter 12.3mm
Total length 63mm
The longer hub bolts will provide more freedom in choosing a big caliper brake system, wider fender flare, and performance wheels.
[The price is for one piece. 20 pieces are required for one CL7.]
- CL7 Super Taikyu Long Hub Bolt
Parts# LHBSS-E2-15
Price $35.00
Designed for Super Taikyu Racing, (Super Endurance Race Series). Tapering the tip of the bolt, makes it easier to change the tires and at the same time prevents costly mistakes while racing. Made of chrome-moly (SCM435) and with a special heat treatment application, the SCM435 will provide additional strength.

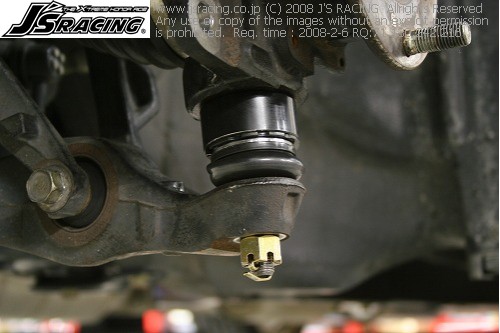

- CL7 FF Roll Center Adjuster
Parts# FCJ-E2
Price $284.00
The roll center adjuster corrects the roll center geometry and achieves the perfect setting you desire.
The lower arm angle on a low-built car tends to be far from ideal and the roll center point can move to a far lower position. The deviation of the roll center from the center of gravity results in a deteriorated cornering force due to the increased body roll. The roll center adjuster rectifies the situation and produces the ideal suspension geometry.
[Results]
Reduced roll, increased stability of the tires, sharper steering response, and faster corning!
- CL7 Rear Camber Adjuster
Parts# PRA-E2
Price $362.00
The product, equipped with pillow balls for the enhanced steering feel, enables the driver to adjust the rear camber angle. The length of the arm is adjustable by the turn buckle. It is a must-have product to fine tune your suspension. A set of two (left & right).
When it is used along with the Pillow Rear Control Arm, you can achieve the maxium flexibility to achieve the best camber angle for your car.

- CL7 Pillow Rear Control Arm
Parts# CAM-E2
Price $336.00
Utilizing high performance pillow balls on both ends of the rear control arm, the control arm enables a driver to find the best combination for toe angle and the camber angle.
(1) The pillow balls eliminate the unwanted angle change and produces direct steering feel and greater stability.
(2) An adjustable end shaft provides freedom to control the bump steer. A lowered CL7/CL9 distorts the position of the control arms and invites frequent bump steer from unwanted toe movement. With this product, you can restore the control arm position to horizontal and reduces the bump steer.
(3) Adjusting the length of the control arm, you can set the best camber angle for your CL7/CL9. The set includes a left & right rear control arms.
(4) When it is used along with the Rear Camber Adjuster, you can achieve the maxium flexibility to achieve the best camber angle for your car.

|
